        Product Classification: Stainless Steel Diaphragm Capsule for High-temperature Thermostat (The series of metal diaphragm can be customized according to customers' requirements)

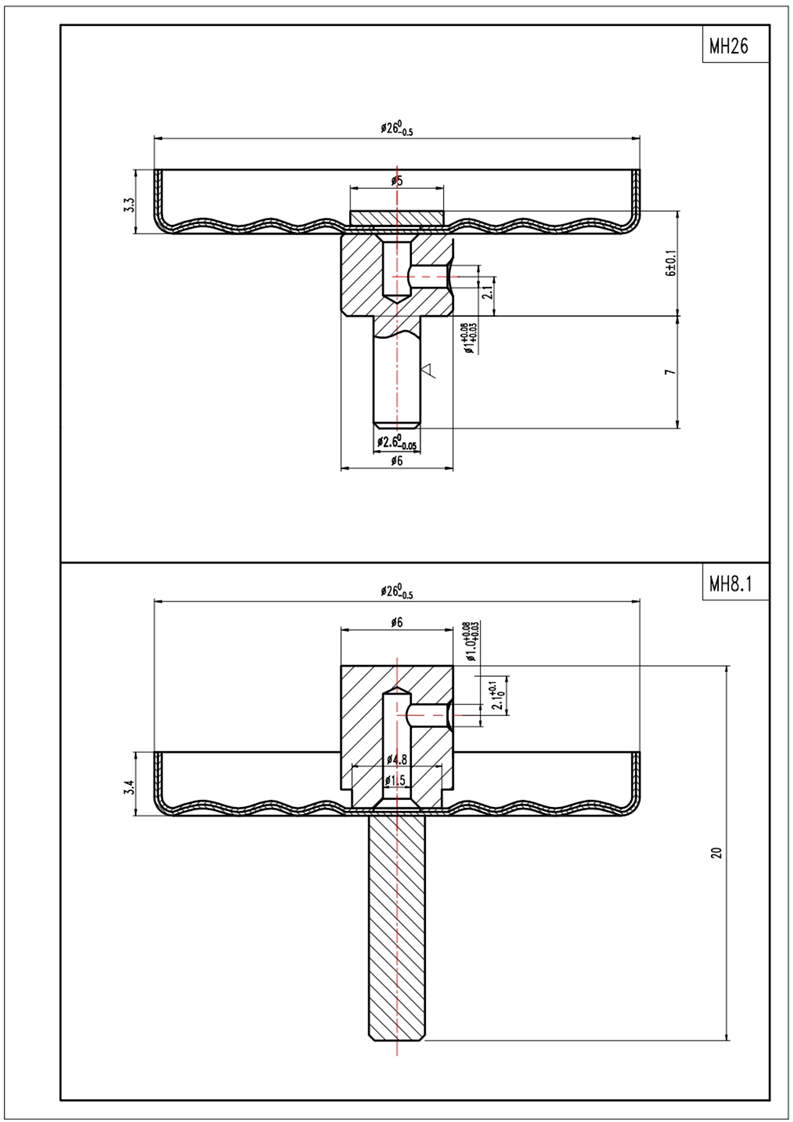

        Stainless Steel Diaphragm Capsule which outer diameter is Φ26 (three waves)

        ?Technical Parameter:
        1、When volume expansion rate△V=177mm^3, center of diaphragm capsule displaces 0.75±0.05mm;
        2、distance between inside and outside bellows ≤0.08mm;
        3、Diaphragm capsule max displacement ≥2mm;
        4、Size of diaphragm capsule handle is made according to customers’ requests.
